How long does "Screen Print Your Own Street Sign Series" take?

This quest typically takes 3-4 hours (plus overnight curing) to complete.

What's the difficulty level?

This is a Intermediate level quest and is family-friendly.

What does this quest cost?

Estimated required cost tier: $$$.

What supplies do I need?

You'll need: Screen Printing Frame Kit with Mesh, Photo Emulsion Kit with Sensitizer, Speedball Squeegee with Rubber Blade, Water-Based Textile Ink Set, Transparency Film or Acetate Sheets.

Screen Print Your Own Street Sign Series

About This Quest

Learn to screen print vintage street sign designs onto fabric using photo emulsion and squeegee techniques.

Screen printing captures the raw typography of city streets—those faded stop signs, rusted route markers, and hand-painted shop numbers that give neighborhoods their visual character. This isn't about buying vintage posters; you're making your own prints from scratch using photo emulsion, a squeegee, and fabric ink. The process connects you to a maker tradition that predates digital design, where every layer requires physical pressure and timing. You'll build a simple wooden screen frame (or repurpose an old picture frame), coat it with light-sensitive emulsion, burn your street sign design into the mesh using a bright lamp, and pull ink through the screen onto tote bags or t-shirts. The first few prints will teach you about ink consistency and pressure—too much floods the design, too little leaves gaps. By your fifth pull, you'll feel the rhythm: position, pour, pull, lift. The smell of textile ink and the satisfying scrape of the squeegee make this tactile in ways a printer never will. Start with high-contrast black-and-white designs—YIELD signs, route numbers, directional arrows. Once you nail registration (aligning multiple layers), you can build two-color prints that mirror the weathered paint layers on actual street signs. Each print becomes a conversation piece: "This is from the corner where my bus always runs late" or "That's the one-way sign everyone ignores."

Duration

3-4 hours (plus overnight curing)

Estimated Cost

$60+

Location

Indoor

Season

Year-round

Family Friendly

All ages welcome

Safety Tips

The Speedball Diazo sensitizer bottle will feel unfilled but it's not empty—it's a very thick oil that requires water to reach the right consistency. Follow the mixing instructions carefully before adding to the photo emulsion.

While Speedball's Diazo Photo Emulsion can be mixed under normal light, always dry and store your coated screens in complete darkness for 4-6 hours to prevent premature hardening before exposure.

Step-by-Step Guide

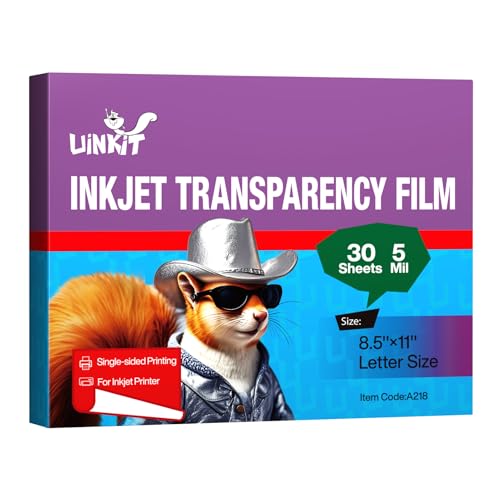

Photograph street signs with strong typography—look for bold letters, simple shapes, high contrast. Convert images to pure black-and-white in photo editing software (threshold adjustment works best). Print onto the Uinkit transparency film (8.5x11 inches) using a dye ink inkjet printer—find the coated printing side according to the instruction on the back of the package.

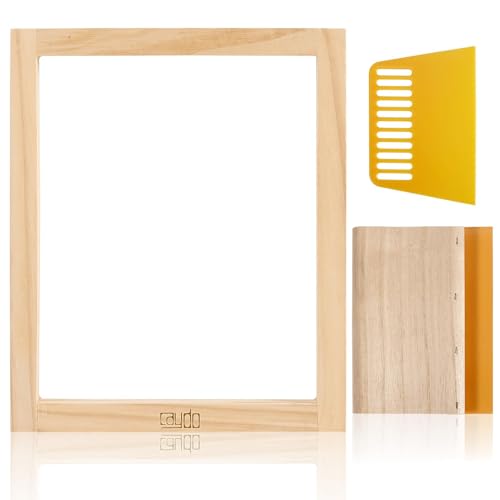

Use the Caydo 8x10 inch wood silk screen frame with 110 white mesh pre-stretched and ready to use. The mesh should be taut—tap it to check tension. This frame size works perfectly for street sign designs that fit within the 8.5x11 inch transparency film.

Mix the Speedball Diazo Photo Emulsion by adding the sensitizer (a thick oil that needs water added first) to activate it. Under normal light conditions, coat your 8x10 inch screen with the activated emulsion using a squeegee, applying thin even layers on both sides. Let dry completely (4-6 hours or overnight) in darkness—the emulsion should be matte, not shiny wet.

Tape your transparency design to the bottom of your dry screen. Place the screen on a black surface (fabric or foam board) and expose it to a bright light source (500W halogen work light or strong LED) for 10-15 minutes. The light hardens the emulsion everywhere except where your design blocks it.

Spray the screen with cold water in a sink or tub. Your design will wash out, leaving open mesh where the image was blocked. This creates your stencil. Let the screen dry completely before printing.

Tape your pre-washed fabric (cotton, polyester, linen, rayon, or other synthetics work well) to a flat surface. Position the screen on top. Pour a line of Speedball Fabric Screen Printing Ink across the top edge of the screen, then pull it firmly across the design with the Caydo squeegee (choose the 9.4 inch or 5.9 inch size based on your frame) at a 45-degree angle. The 75 durometer rubber blade is suitable for conventional screen printing. Lift carefully—you've made your first print.

Let prints dry flat for 24 hours, then heat-set with an iron (cotton setting, 3-5 minutes through parchment paper) to make the Speedball ink permanent and washable, producing a super soft-hand on fabric. Print at least 5-10 copies to refine your technique—each one will be slightly different, just like the weathered signs that inspired them.
